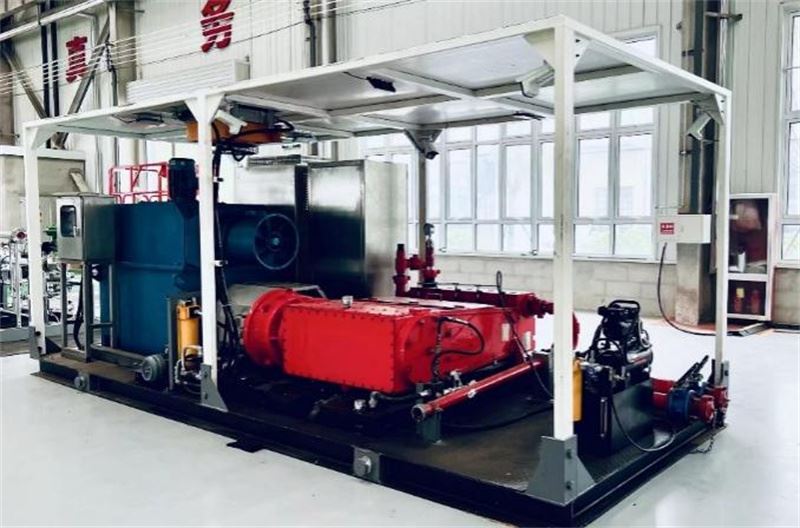

Product Features:
*Core Performance: Rated flow rate 1000 L/min (adjustable under working conditions); rated pressure 35 MPa ,Fracturing Pressure 105 Mpa
*Premium Materials: Forged alloy steel pump head, high-hardness alloy plungers, corrosion-resistant alloy valve assembly
*Driving Motor: 750 kW three-phase asynchronous motor, Class F insulation, rotational speed 1490 r/min
*Variable Frequency Control: 800 kW ENC vector inverter, stepless speed regulation from 0 to 50 Hz, supporting remote/local control
*Dimensions: 6000×2500×2500 mm (L×W×H), total weight 13 t
*Environmental Adaptability: -20℃~ +45℃,humidity≤95% non-condensing, altitude ≤1000 m
*High Efficiency & Energy Saving: Adaptive variable frequency speed regulation, achieving 20%-30% energy saving compared with power frequency operation
*Precise Control: Closed-loop regulation of pressure and flow, supporting remote automatic operation
*Rapid Deployment: Integrated skid-mounted design, reducing on-site installation work and shortening commissioning period
*Stable & Durable: Dual protection mechanism, modular design for convenient and low-cost maintenance
