Deep-Sea Multi-Element Boundary Layer Monitoring System

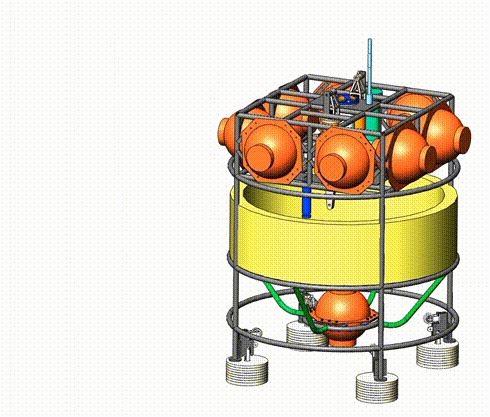

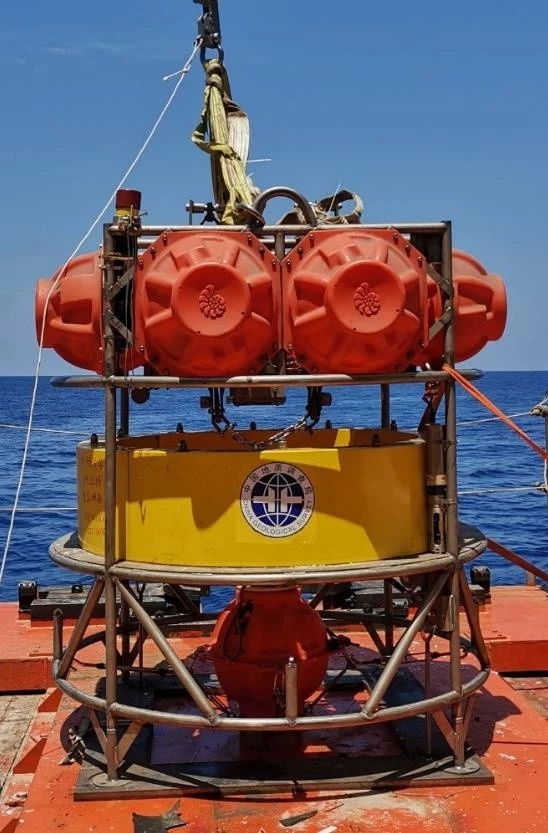

The main component of the deep-sea multi-element boundary layer monitoring system is a deep-sea lander. It combines the capability to monitor acoustic elements of the seabed boundary layer at a 6000m depth with the ability to collect multiple environmental parameters. During sea trials, it successfully obtained information on the acoustic field characteristics of the seabed boundary layer at the test site, environmental chemical parameters, changes in the equipment's seabed posture, images, and more. It also meets the requirements for deploying and recovering OBS devices.
Maximum working depth: 6000 m • Longest underwater operation time: 1 year • Equipment dimensions: height 2.25 m, length 1.8 m, width 1.8 m, titanium alloy material • Instrument layer height: 1.5 m • Installed instruments: hydroacoustic recorder, attitude sensor, ADCP, OBS, camera and lighting system, water quality instrument
