Common Features:
- Energy conversion method: energy-storing hydraulic conversion, adaptable to a wide range of conditions
- Output voltage: 220V, 380V, 690V, with other voltages customizable
- Installation method: tide-difference adaptive installation, customization supported
- Design life: 25 years

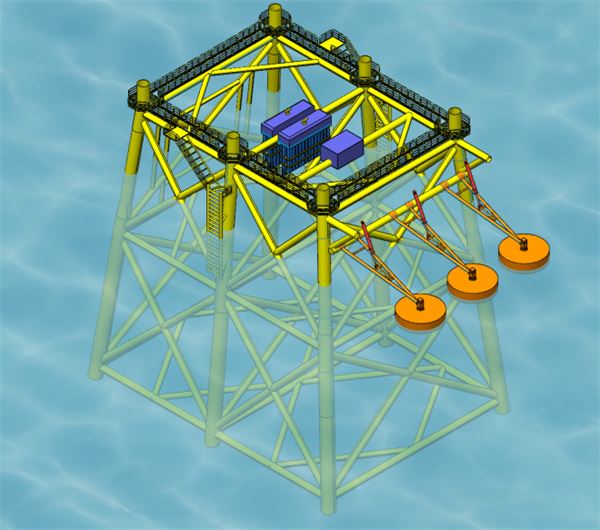

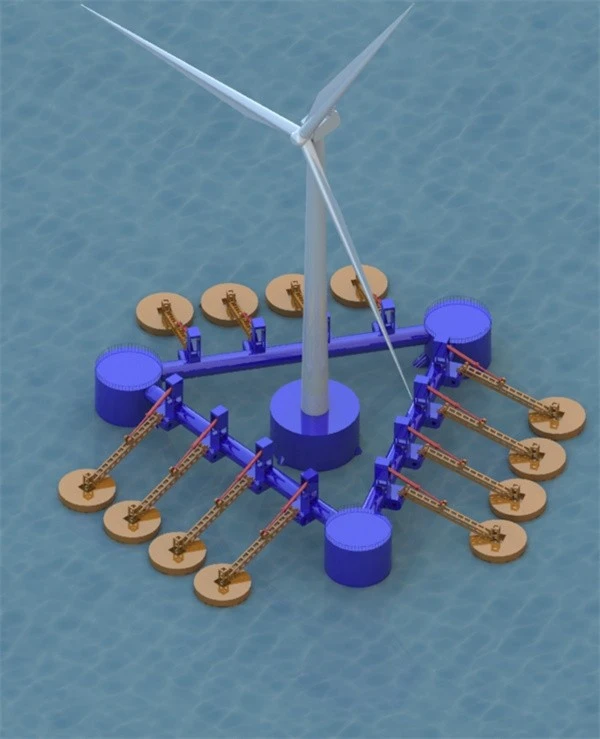

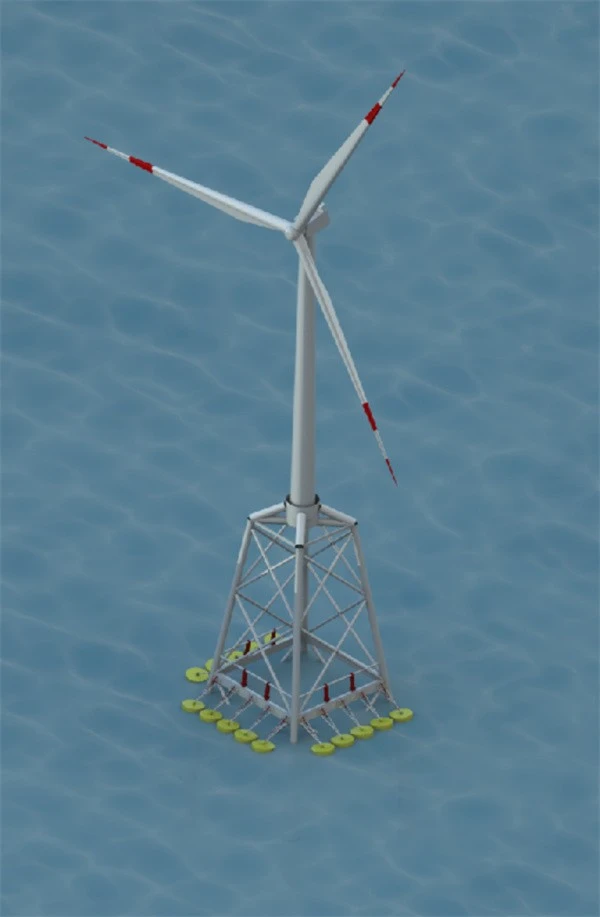

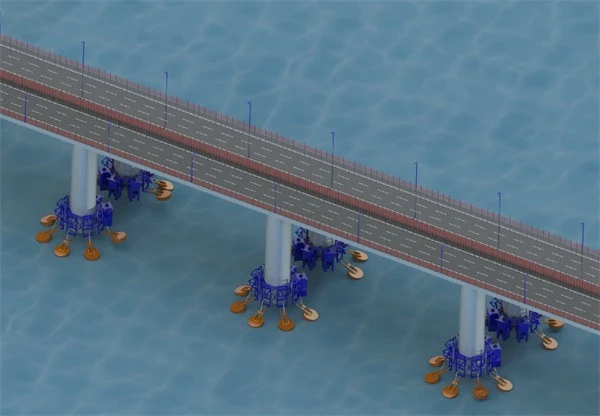

- Application scenarios: can be integrated into breakwaters, offshore bridge piers, offshore wind platforms, floating sea platforms, etc., with scenario-specific customization supported
Features of the JHLFD-1000：
• Floater diameter: 1000mm
• Floater weight: 200kg
• Installed power: 1kW
• Floater swing range: ±60°
• Average power generation efficiency: 20%
• Rated working sea conditions: wave height 0.5m~1.5m
Features of the JHLFD-2000：
• Float diameter: 2000mm
• Float weight: 600kg
• Installed power: 2.5kW
• Float swing range: ±50°
• Average power generation efficiency: 23%
• Rated working sea conditions: wave height 1.0m~2.0m
Features of the JHLFD-3000：
• Float diameter: 3000mm
• Float weight: 1000kg
• Installed power: 5kW
• Float sway range: ±45°
• Average power generation efficiency: 25%
• Rated working sea conditions: wave height 1.5m–3.0m
