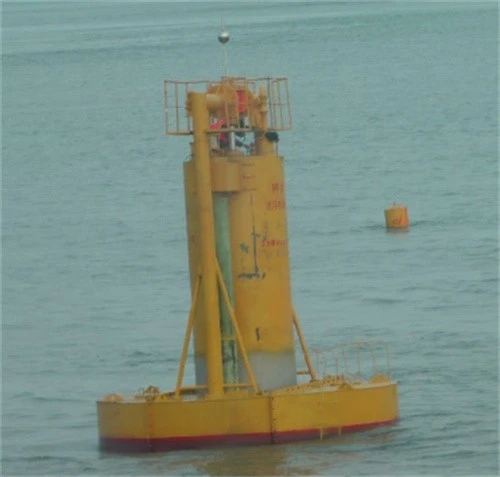

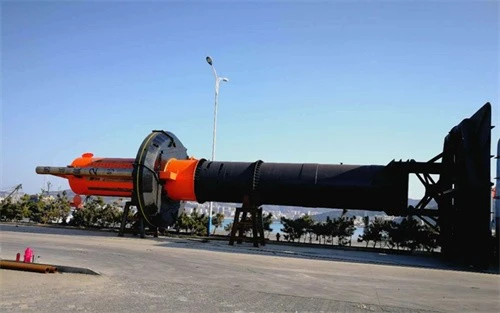

Product Features:
• Installed power range: 1kW~120kW
• Suitable water depth: 20m~100m

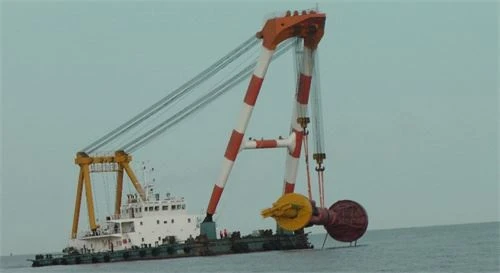

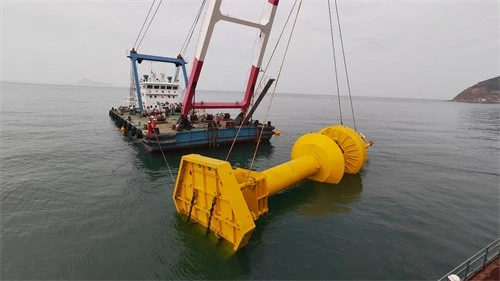

• Deployment method: three-anchor or four-anchor mooring, supports other custom installations
• Average weight-to-power ratio: 1 ton/kW (including mooring)
• Energy conversion method: energy-storing adaptive hydraulic variable-damping conversion
• Output voltage: 220V, 380V, 690V, supports other custom voltages
• Average real sea power generation efficiency: 20%
• Rated operating sea conditions: wave height 0.5m~3.0m, with wide-condition adaptability
• Tested survival sea conditions: 10m wave height, level 12 wind

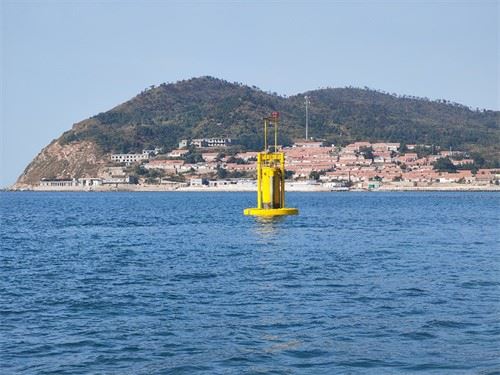

• Real sea condition testing: continuous operation and maintenance for over 1 year
• Designed lifespan: 25 years
Application scenarios:
1. Offshore reefs and uninhabited islands independent power supply

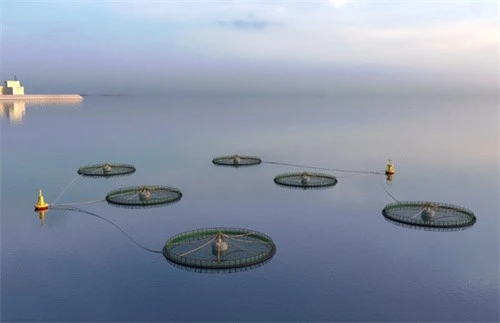

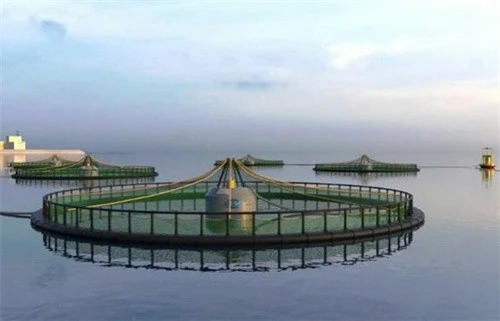

2. Deep-sea aquaculture platforms and deep-water cage farming areas

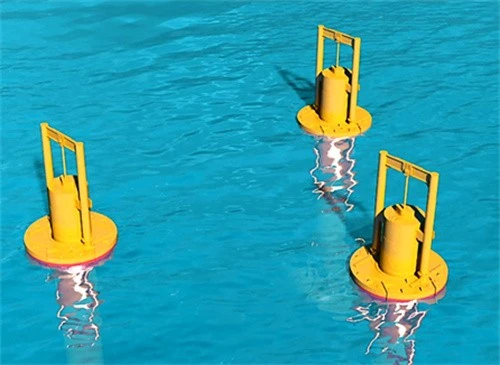

3. Networked and arrayed wave energy equipment
4. Marine observation and ocean IoT
5. Maritime navigation aids, offshore security, and channel facilities
