Common Features:
Power Generation Method: Impulse turbine, supports customized Wells turbine
Output Voltage: 24V, 48V
Design Life: 25 years
Application Scenarios: Offshore buoys, navigation lights, integrated into breakwaters, integrated into cross-sea bridge piers, integrated into offshore wind platforms, integrated into floating sea platforms, etc., supports scenario customization
WHLFD-200
- Chamber area: 1m³
- Flange installation diameter: 300mm
- Height: 620mm
- Installed power: 200W
- Weight: 30kg
- Average power generation efficiency: 18%
- Rated working sea conditions: wave height 0.5m~1.5m
WHLFD-600
- Air chamber volume: 1.5 m³
- Flange mounting diameter: 360 mm
- Height: 620 mm
- Installed power: 600 W
- Weight: 40 Kg
- Average power generation efficiency: 18%
- Rated working sea conditions: wave height 1.0 m ~ 2.0 m
WHLFD-800
- Air chamber volume: 2 m³
- Flange installation diameter: 450 mm
- Height: 620 mm
- Installed power: 800 W
- Weight: 55 Kg
- Average power generation efficiency: 18%
- Rated working sea conditions: wave height 1.5 m ~ 3.0 m

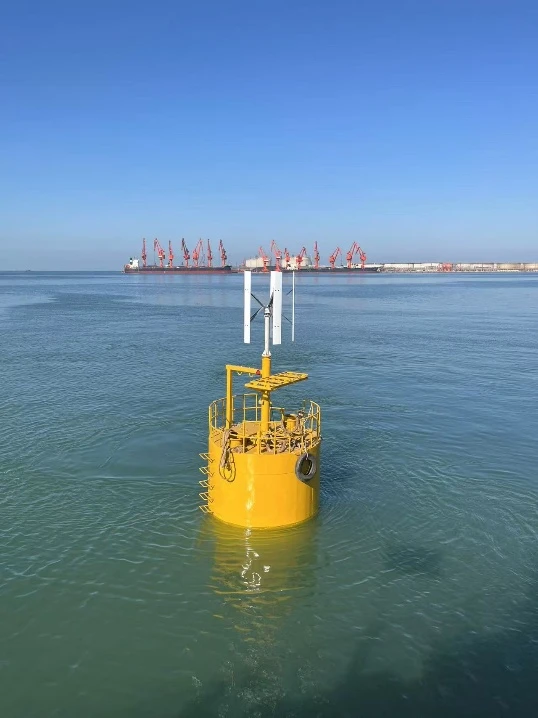

Application Case:
Offshore Integrated Energy Supply System
